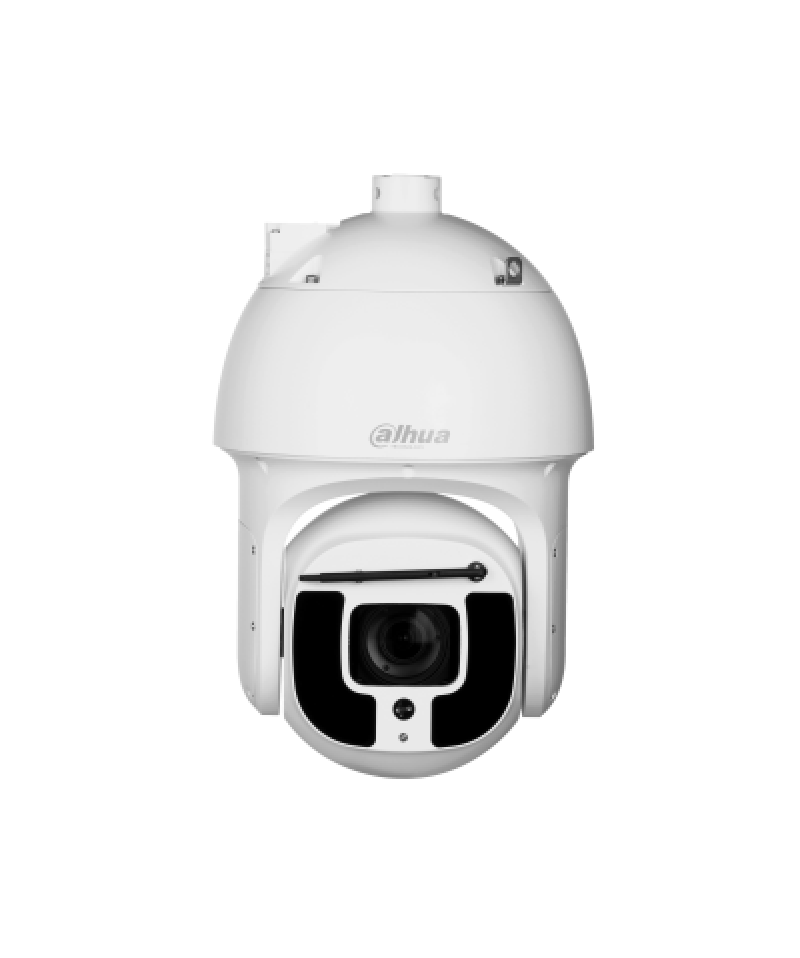

Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/1 s–1/30,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
Color: 0.001 Lux@F1.4 B/W: 0.0001 Lux@F1.4 0 Lux@F1.4 (illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
500 m (1640.42 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiper |
Smart wiper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
5.6 mm–223 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.4– F4.8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 70.3°–1.8°; V: 35.1°–1°; D: 67.5°–2° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
40x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.1 m–1 m (0.33 ft–3.28 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
2340 m (7677.17 ft) |
930 m (3051.18 ft) |
460 m (1509.19 ft) |
230 m (754.59 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range |
Pan: 0°–360° endless Tilt: -30°–90°, auto flip 180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed |
Pan: 0.1° –240°/s Tilt: 0.1° –100°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed |
Pan: 240°/s; Tilt: 120°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset |
300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour |
8 (up to 32 presets per tour) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Adjustment |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion |
Preset; Tour; Pattern; Scanning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
DH-SD; Pelco-P/D (auto recognition) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Event Trigger |
Motion detection; video tampering; scene changing; network disconnection; IP address conflict; illegal access; storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS |
Object abandoned; object missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN55032; EN55024; EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Output |
1 port (BNC, 1.0V[p-p], 75Ω) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O |
1/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm I/O |
7/2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC 36V/2.23A (±25%); Hi-PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
26W, 38W (heater on, IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40°C to +70°C (–40°F to +158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
Φ262 mm × 415.6 mm (Φ10.31" × 16.36") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
8.5 kg (18.74 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
14.3 kg (31.53 lb) |
